Description

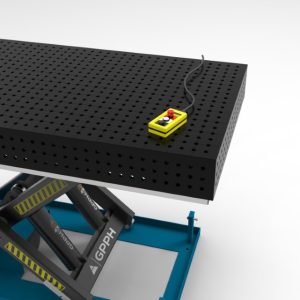

GPPH Welding Tables with a hydraulic lifting system are specialized tables with automatic height adjustment of the worktop.
Thanks to this feature, you can quickly and easily achieve the ideal working height, ensuring a high level of comfort during work.
Welding tables with a hydraulic lifting system feature:
- an overload valve that prevents lifting loads that are too heavy;
- a safety valve that stops lowering in the event of hydraulic hose rupture;
- limit switches that protect against crushing or injury to the user.
Tables with a hydraulic lifting system are available in five GPPH welding table top series: PRO, PRO INOX, PLUS, PLUS INOX, and ECO, with each series offered in 4 size variants.
Each table top is available with Ø28 mm holes in 100×100 mm and diagonal grids, as well as with Ø16 mm holes in 50×50 mm, 100×100 mm, and diagonal grids.
The Welding Table must be flat! The tops of PLUS Tables, with a thickness of 12mm, have dense ribbing, which results in a perfectly flat working surface. The massive and rigid support structure of the top guarantees maximum stability during use and protection against deformation. The flatness tolerance of the table over the entire top is ≤0,3 mm (less than or equal to 0,3 mm).
Milled and chamfered holes in the top of the Welding Table make it easy to assemble and disassemble tools during your work, thanks to the precise fit between the holes and the tools. This also reduces their wear – you do not need great force for assembly and disassembly. This design is the best of the available solutions on the Welding Table market! The manufacturing tolerance of the welding table holes is ≤0,05 mm (less than or equal to 0,05 mm).
Technical specifications of the base with hydraulic lifting system:
- power supply voltage: 400 V
- speed: 1400 rpm
- protection class: IP54
- insulation class: F
Technical parameters
- Maximum load capacity [kg]: 3400
- Lifting time with load [s]: 45–55
- Maximum table height [mm]: 1550
- Minimum table height [mm]: 530
- Lifter base dimensions [mm]: 1863×890
- Engine power [kW]: 2.2
